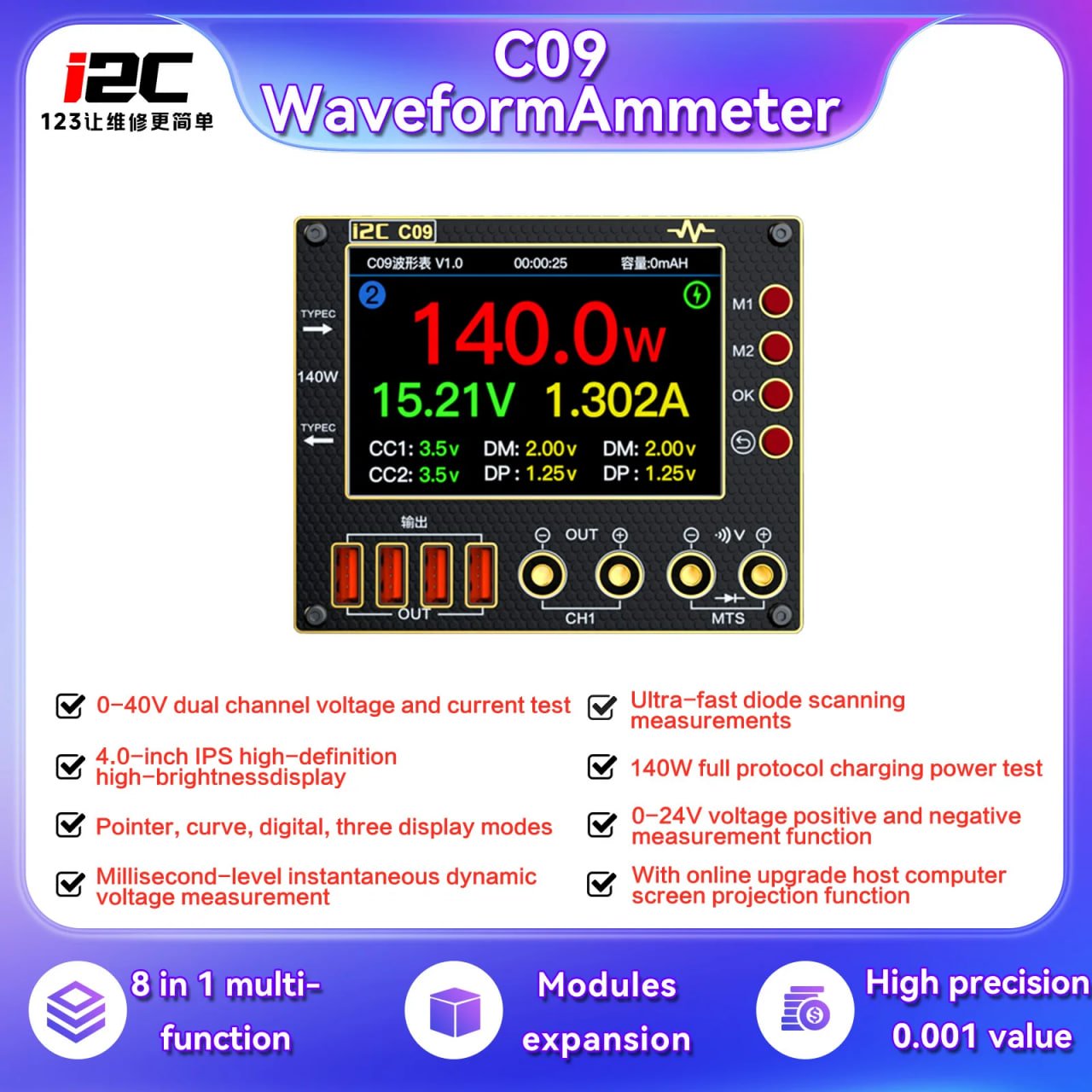

CO9 Professional Waveform Ammeter

CO9 Professional Waveform Ammeter – Ultimate Diagnostic Tool for Electronics Repair

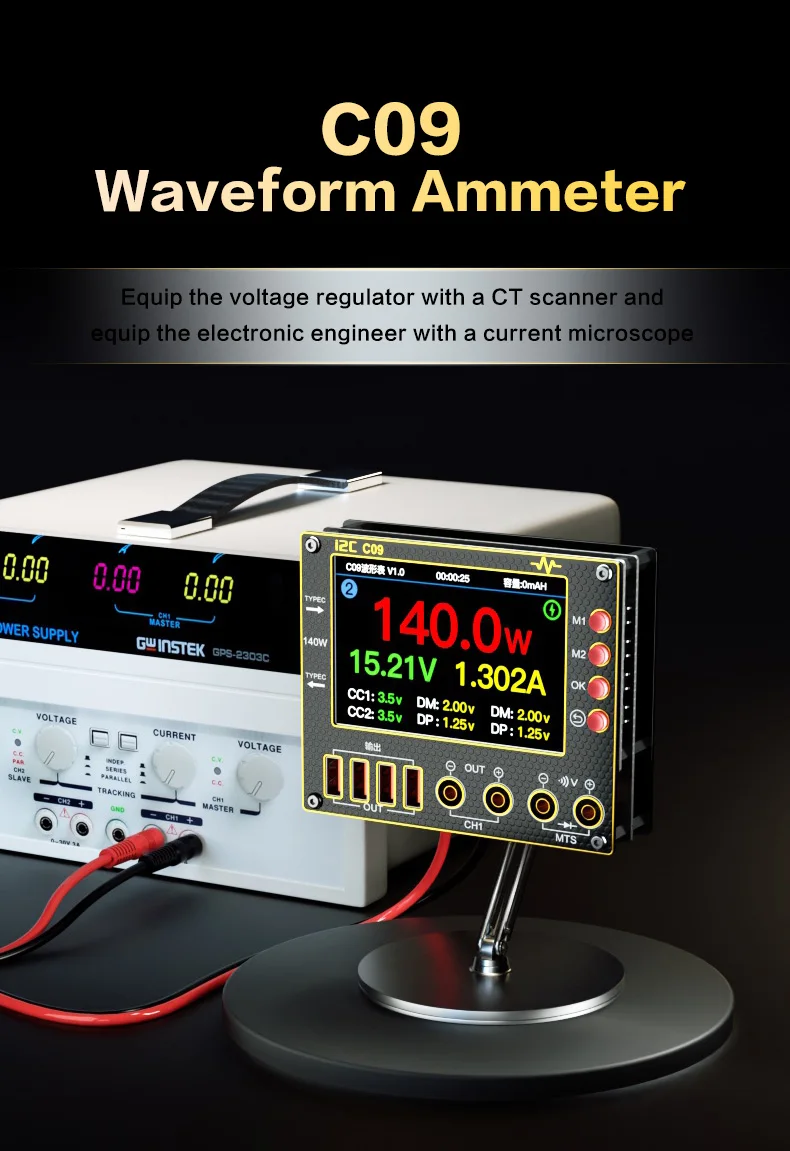

The CO9 Waveform Ammeter revolutionizes electrical diagnostics with its advanced triple-display system and millisecond-level response time. This professional-grade instrument combines voltage/current testing, protocol analysis, and waveform visualization in one compact device.

Key Features:

 Advanced Triple-Display System

• Digital mode for precise numerical readings

• Curve mode for visual trend analysis

• Pointer mode for traditional measurement

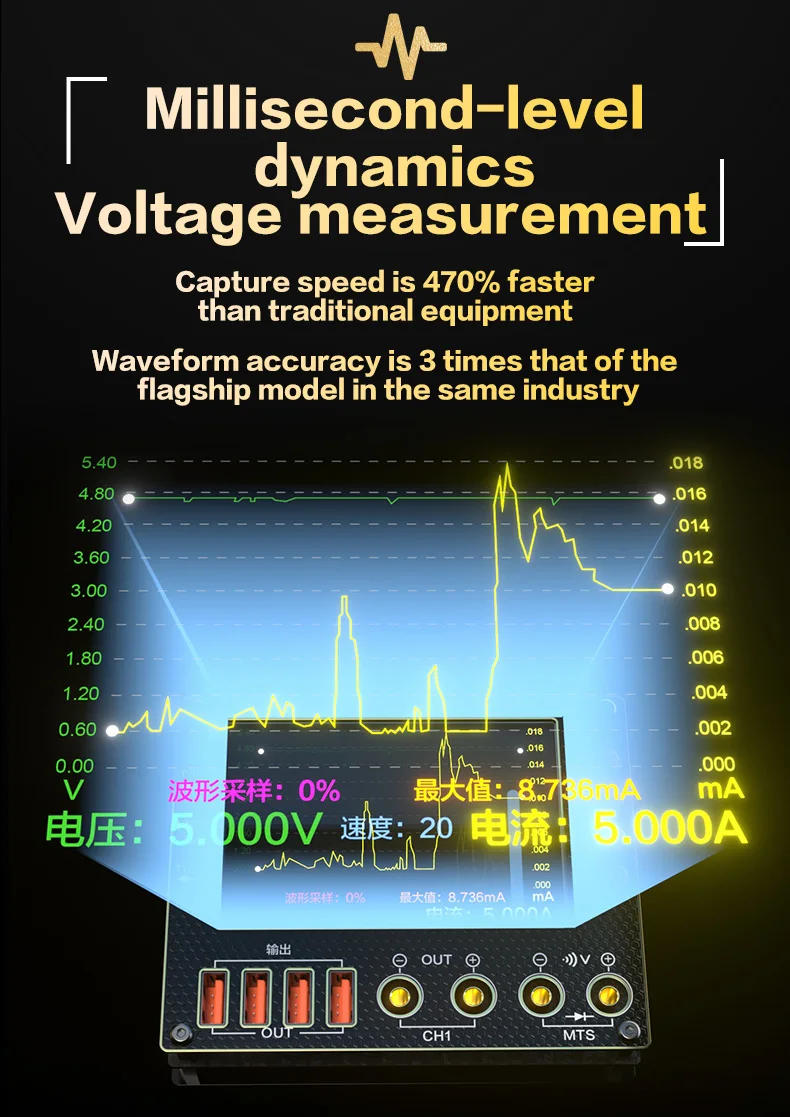

 Ultra-Fast Dynamic Measurement

• 470% faster capture than conventional meters

• 3× higher waveform accuracy than competitors

• 0.01s response time for diode scanning

 Comprehensive Electrical Testing

• Dual-channel 0-40V voltage/current monitoring

• 0-24V positive/negative measurement

• 140W charging protocol analysis

• Short circuit detection & protection

 Professional-Grade Specifications

• 4.0″ IPS HD display (320×480)

• 100µA current accuracy

• 1mV voltage resolution

• 0.1mA current resolution

• Host computer connectivity

Technical Specifications:

• Input Voltage: 0-40V DC

• Current Range: 0-8A

• Protection: <60V, <15A

• Screen: 4.0-inch IPS

• Power: 5V/2A

• Dimensions: 11.4×19.3×72.8cm

Professional Applications:

• Circuit board diagnostics

• Power supply testing

• Charging protocol analysis

• Short circuit detection

• Electronic component testing

Why Choose CO9 Ammeter?

• Combines multimeter, oscilloscope and protocol analyzer

• Saves 300% troubleshooting time

• Professional accuracy for repair technicians

• Future-proof with upgradeable firmware
